What is a Confined Space?

/in /by

A confined space does not necessarily mean a small, enclosed space. It could be rather large, such as a ship’s hold, a fuel tank, or a pit.

One of the first defining features of a confined space is it’s large enough to allow an employee to enter and perform work. The second defining feature is it has limited means of entry or exit. Entry may be obtained through small or large openings and usually there is only one way in and out. The third defining feature is that confined spaces are not used for continuous or routine work.

All confined spaces are categorized into two main groups: non-permit and permit-required. Permit-required confined spaces must have signs posted outside stating that entry requires a permit. In general, these spaces contain serious health and safety threats including:

  • Oxygen-deficient atmospheres
  • Flammable atmospheres
  • Toxic atmospheres
  • Mechanical or physical hazards
  • Loose materials that can engulf or smother

Although a confined space is obviously dangerous, the type of danger is often hidden. For example, a confined space with sufficient oxygen might become an oxygen-deficient space once a worker begins welding or performing other tasks.

These are some of the reasons confined spaces are hazardous:

  • Lack of adequate ventilation can cause the atmosphere to become life threatening because of harmful gases.
  • The oxygen content of the air can drop below the level required for human life.
  • Sometimes a confined space is deliberately filled with nitrogen as a fire prevention technique. Nitrogen cannot sustain human life, so you must use respiratory protection.
  • Many gases are explosive and can be set off by a spark.
  • Even dust is an explosion hazard in a confined space. Finely-ground materials such as grain, fibers and plastics can explode upon ignition.
  • Confined spaces often have physical hazards, such as moving equipment and machinery.
  • Tanks and other enclosed confined spaces can suddenly be filled with materials unless the flow process for filling it is controlled.

Before entering any confined space, you must test the atmosphere to determine if any harmful gases are present. There must also be radio contact with an attendant outside the confined space and a rescue team at the ready in case of an emergency.

Don’t Kill Your Turbine on Startup

/in /by

Your lube oil temperature needs to be lower at startup and shutdown than at full
speed.

Your turbine’s rotor does not actually ride on the surfaces of its bearings. It rides on a thin film of oil between the rotor and the bearing. At high turbine speeds the rotor hydroplanes across the oil, eliminating contact with the Babbit of the bearing. The heat generated by the turbine decreases the viscosity of the oil and increases its “slipperiness”, which is important at high speeds. As the rotor slows, the oil needs to be more viscous to repel the force towards the bearing.

Failure to lower the lube oil temperature (and therefore increase viscosity) can result in light bearing wipes or smearing.  These conditions would occur during turning gear operation, unit startup and unit coast down during shutdown.  The ideal lube oil temperature at these lower speeds is 90 degrees F.  Of course, oil temperature can also be too cold on startup, similar to trying to start your car on a cold winter day. Operational personnel are ultimately responsible for maintaining this lower lube oil temperature by regulating water through the lube oil coolers.

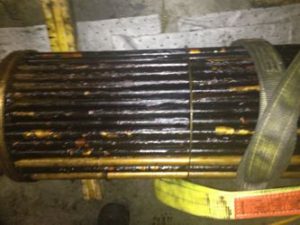

Maintaining lube oil cooler cleanliness is also very important. The tubes must be clean for efficient transfer of heat. The bundles should be cleaned every two (2) years.  Lube oil coolers are the single most common area for contaminants to hide. These contaminants can also lead to bearing failures, as discussed in an earlier Turbine Tip.
